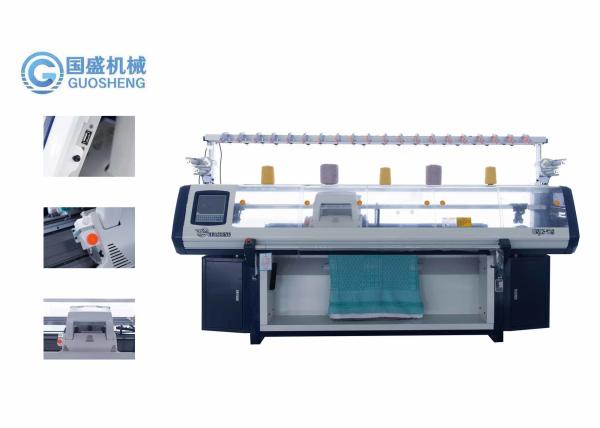

Fully Fashion Computerized Blanket Weaving Machine Fabric
Specifications
| GAUGE | 357G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 14G |
| KNITTING WIDTH | 44/52/60/72INCH |
| KNITTING SPEED | 1.2M/S |
| KNITTING FUNCTION | TRANSFER, MISS, JACQUARD, HIDE AND APPARENT SHAPING |
| STITCH DENSITY | stich system controlled by stepping motor, 32 section stitch
selectable, adjustable scope supported by subdivision technology:
0-650 |
| RACKING | controlled by AC servo motor, racking with 2 inches and with fine
adjusting function |
| DRIVE SYSTEM | synchronous belt drive, AC servo system |
| NEEDLE SELECTION | controlled by computer, electric magnet needle choose system with
high position |
| YARN CARRIER | 1x6 yarn carriers oon each side of 3 guide ralis, shiftable on any
needle position |
| TAKE DOWN ROLLER | programmed instruction controlled by stepping motor, 32 section
levels selection adjustable area: 0-100 |
| PROTECTION SYSTEM | the machine will automatically alarm if yarn breaking, float yarn,
rewind, end of knitting, fail of racking, needle breakage and
needle and error programming occur ect. |
| POWER | 220V. single-phase. memorizing function at the power-off moment. |
CONTROL SYSTEM: 1. LCD screen. USB input device. 256MB memory system.
2. monitoring menu, each kind of operating parameter, can be shown,
and they can be adjusted at any time when the machine is running.
3. multi language version, there are Chinses, English, Spanish and
etc.
PRODUCT DETAILS
ARN FEEDER
Yarn feeders can be adjusted according to the knitting width of
fabric,also can be adjusted by programmable fine tune according to
the carriage’s running speed.
PROBE ALARMING DEVICE
Probe alarming device is a breakthrough as compared with the
current monotonous detecting mode where the probes sway from side
to side.This device is able to completely,safely and effectively
realize the detection and avoid the damaged to the fabrics and
other failures.So as to ensure the normalized operation of the
machine and increase the working efficiency of knitting process.
YARN TRANSPORTATION DEVICE
The yarn transportation device is installed between the yarn bucket
and knitting system,which greatly improves the uneven tension
caused by overlong yarn journey,When then yarn is sued up or
breakage of yarn takes place due to any reason,the sensor in the
yarn transportation device will alarm and the machine stops
working.This prevents the broken yarn from entering then knitting
area,making the connection of yarn easily and avoiding the damages
to the quality of fabrics.
SIDE YARN BRACKET
The side yarn bracket adopts high performance springs to exert
direct force to the part of yarn-picking.In addition to the
function of transferring the yarn with a certain tension to the
knitting ear,it is also able to pick up the redundant yarn when the
carriage stops moving upon change of the direction,making the yarn
tensed under a certain tension,so as to ensure the normalized
knitting.The side yarn bracket has safely alarms,which has sensors
that are immune to the interference from the environment,capable of
keeping their sensitivity from the beginning to the end.
EMERGENCY SWITCH
Upon emergency or when doing maintenance such as yarn going
through,needle changing and residue cleaning,this switch allows the
machine to stop working under a locked status,no need to disconnect
the main power.In this way,the data of the machine is properly kept
and accidents can be avoided,which ensure the safety of both
operator and machine.
