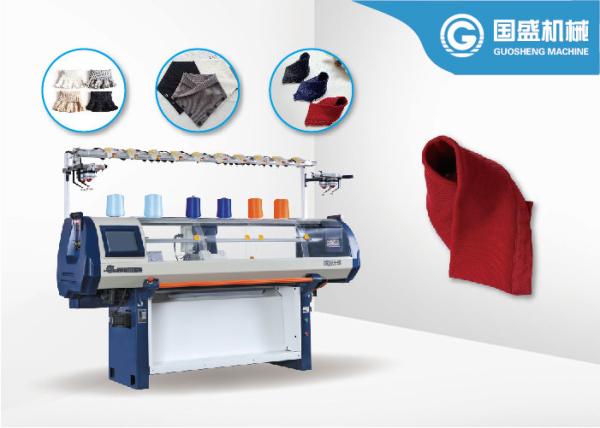

Industrial Use Computerized Flat Knitting Machine Intarsia Guosheng
PRODUCT DESCRIPTION
Flat knitting machine can knit basic stitch like plain stitch, rib
fabric, links and links, interlock stitch, etc. irregular multi
color jacquard, twit flowers weft organization, cord weave, racked
stitch, cable, etc.
Flat knitting machine is suitable to use synthetic, wool, acrylic,
mixed fiber, yarn material etc to knit sweater,collar,shoe
upper,school uniform.ready-made cardigan, hat,scarf and accessories
of cloth.
PRODUCT FEATURES
| Model | GSJX-1-60 |
| Gauge | 5G,6G,7G,8G,9G,10G,12G,13G,14G,15G |
| Knitting System | Single System Single Carriage |
| Knitting Width | 60 Inch |
| Knitting Speed | Max.1.2m/Sec |
| Knitting Function | Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide Or Apparent Shaping. |
| Stitch Density | Stitch System Controlled By Stepping Motor,32 Section Stitch
Selectable,Adjustable Scope Supported By Subdivision
Technology:0-650 |
| Racking | Controlled By Ac Servo Motor,Racking Within 2 Inches And With Fine
Adjustiing Function. |
| Drive System | Synchronous Belt Drive,Ac Servo System |
| Needle Selection | Controlled By Computer,Electric Magnet Needle Choose System With
High Efficiency. |
| Scissor And Clamp | Including 2 Scissor And 4 Clamps ,Which Individually Controlled By
6 Motors Separately,Located The Both Of Needle Bed
Separately,Further To Increase The Work Efficiency And To Reduce
Yarn Consumption. |
| Yarn Carrier | 1x6 yarn Carriers On Each Side Of 3 Guide Rails,Shiftable On Any
Needle Position |
| Take Down Roller | Programmed Instruction Controlled By Stepping Motor,32 Section
Levels Selection Adjustable Area:0-100 |
| Sinker System | Assist Knitting,Have Various Results Of Shaping And Stop. |
| Protection System | The Machine Will Automatically Alarm If Yarn Breaking,Float
Yarn,Rewind,End Of Knitting,Fail Of Racking,Needle Breakage And
Error Programming Occur Ect. |
| Control System | 1,Adopt Lcd Screen,Input Device:Usb,System Memory 256mb,A Great
Amount Of Design Files Can Be Stored.2,Monitoring Menu,Each Kind Of
Operating Parameter,Can Be Shown,And They Can Be Adjusted At Any
Time When The Machine Is Running.3,Design System Is Visual And Easy
To Understand And Upgrad.4,Multi Language Version,There Are
Chinese,English Etc. |
| Power | 220v ,Single-Phase,Have Memorizing Function At The Power-Off Moment |
PRODUCT DETAILS
YARN FEEDER
Yarn feeders can be adjusted according to the knitting width of
fabric,also can be adjusted by programmable fine tune according to
the carriage’s running speed.
PROBE ALARMING DEVICE
Probe alarming device is a breakthrough as compared with the
current monotonous detecting mode where the probes sway from side
to side.This device is able to completely,safely and effectively
realize the detection and avoid the damaged to the fabrics and
other failures.So as to ensure the normalized operation of the
machine and increase the working efficiency of knitting process.
YARN TRANSPORTATION DEVICE
The yarn transportation device is installed between the yarn bucket
and knitting system,which greatly improves the uneven tension
caused by overlong yarn journey,When then yarn is sued up or
breakage of yarn takes place due to any reason,the sensor in the
yarn transportation device will alarm and the machine stops
working.This prevents the broken yarn from entering then knitting
area,making the connection of yarn easily and avoiding the damages
to the quality of fabrics.
POWER FAILURER PROTECTION
With power failure protection,the machine is able to automatically
memorize the data upon power failure the and recover the data when
the power is restored,so that the machine can continue the pending
work according the programmed patterns,which avoids the waste of
yarn ans saves the time,without compromising the quality of the
fabrics.
SIDE YARN BRACKET
The side yarn bracket adopts high performance springs to exert
direct force to the part of yarn-picking.In addition to the
function of transferring the yarn with a certain tension to the
knitting ear,it is also able to pick up the redundant yarn when the
carriage stops moving upon change of the direction,making the yarn
tensed under a certain tension,so as to ensure the normalized
knitting.The side yarn bracket has safely alarms,which has sensors
that are immune to the interference from the environment,capable of
keeping their sensitivity from the beginning to the end.
APPLICATION FIELDS
ABOUT US
Guosheng is the professional manufacturer of flat knitting machine
since 1992.Until now,it has exported to more than 35 countries.
We pursue quantity and quality,as it’s our responsibility to give
you a satisfactory purchasing experience.
Guosheng has a complete inventory system, which can meet the needs
of every customer, and sets the delivery period at about 10-15
days.Even if you require customization, our assembly line can
effectively improve work efficiency and greatly shorten the
delivery time.
STRONG AFTER-SALE SERVICE TEAM
You will get free machine operation training & pattern-designing
training as soon as you buy our machine.
Mature and attentive service is what Guosheng hold as the principle
of service,machine operation training for free and
pattern-designing training for free to free customers from all the
worries.
PACKAGE AND TRANSPORT
To make sure the product you buy is safe during transportation,we
use plastic package+wooden package.
In addition,we provide complete packaging methods according to your
requirement,and provide convenience for loading,uploading and
storage as well as save time for checking and delivery.
