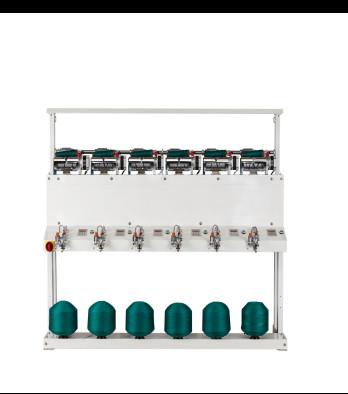

Cone Wool 3 Phased Polyester Yarn Winding Machine

    Buy cheap Cone Wool 3 Phased Polyester Yarn Winding Machine from wholesalers

    Buy cheap Cone Wool 3 Phased Polyester Yarn Winding Machine from wholesalers
    • Buy cheap Cone Wool 3 Phased Polyester Yarn Winding Machine from wholesalers

    Cone Wool 3 Phased Polyester Yarn Winding Machine

    Ask Lasest Price
    Brand Name : GUOSHENG
    Model Number : GS001
    Certification : ISO9001
    Supply Ability : 1000 Set/Sets per Month
    Price :
    • Product Details
    • Company Profile

    Cone Wool 3 Phased Polyester Yarn Winding Machine

    high speed domestic wool winder, economic type, manufacturer
    Product Description

    Description:

    Durable computer control hard winder used for cone to cone hard package,shuttle loom,warper,hosiery machine.The winding speed is controlled by computer,max:1100m/minute.It has easy adjusting radial anti patterning system.The advanced yarn clearing and tension system with photoelectric yarn detecting can avoid knotting and twisting for yarn.Precise and senstive speed testing system can ensure even winding length(weight).The electric turning waxing machine can ensure the waxing quatity and evenness.It's quite suitable for winding yarn of cotton,flax,silk,chemical fiber.


    Machine Application:

    GS008S High Speed Soft winding machine, it's mainly for the Yarn Dyeing preparing using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.


    Equipments:
    Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)


    Parameters:

    1. Drive: every spindle per motor

    2. Winding speed: Cotton: about 800M/min, Fiber: about 600 M/min (Density: 0.2-0.4g/cm3)

    3. Has function of Anti-Hard-Edge and Electronic Anti-Stack.

    4. Package Dia≤ 220mm; Take-up length: 152mm;

    5. Each spindle with length counter;

    6. Advanced control panel;


    Technical parameters:


    MODELGM-TD002 High Speed AC Hard Winder
    GROOVED DRUMO/D 82mm,pitch 2.5,symmetrical 0°.
    TAKE UP3°30’,4°20’,5°57’(φ62),5°57’(φ68)
    CONFIGURATION2 Heads/Section
    MAX. SPEED1000m/min
    TRAVERSE147mm Standard:147mm
    BALANCERThe winding pressure can be controlled by balance of spring.
    MAX. PACKAGE250mm
    START/STOPBy film switch,general control for single side by LCD.
    RADIAL ANTI PATTERNING SYSTEMThe anti patterning parameter is controlled by computer.
    ABSORBED POWER90W per head at max. speed
    POWER SUPPLY220V±10%,50/60Hz 3 phased 220V ± 10%,50/60Hz
    DRIVE SYSTEM1,Single head control alone,12 heads to 108 heads is acceptable.
    DETECTORInfrared ray has the function of stop motion for broken yarn,full bobbin and empty spin.
    MOTORIZATIONEach spindle has one inverter motor, and each side has most 60 Spindles.
    YARN CLEARING ASSYConsists of the up,down blades and adjustable holder,can adjust size according to the number of yarn.
    BLOWING SUCKING CLEANER1100W motor power of cleaner.
