PRODUCT DESCRIPTION

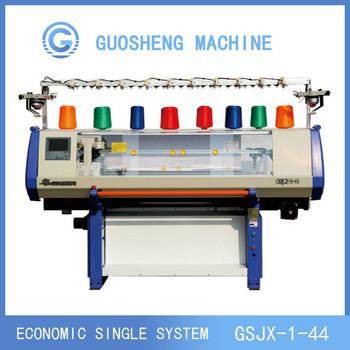

This is computerized flat knitting machine with single carriage
double system.
Flat knitting machine applies digital technology to achieve
transfer,tuck,eyelet stitch,jacquard,apparent shape,hidden shape
and other regular pattern knitting functions.
Flat knitting machine can knit basic stitch like plain stitch, rib
fabric, links and links, interlock stitch, etc. irregular multi
color jacquard, twit flowers weft organization, cord weave, racked
stitch, cable, etc.
Flat knitting machine is suitable to use synthetic, wool, acrylic,
mixed fiber, yarn material etc to knit sweater,collar,shoe
upper,school uniform.ready-made cardigan, hat,scarf and accessories
of cloth.
PRODUCT FEATURES
| Model | GSJX-2-44 |
| Gauge | 3G,3.5G,3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G |
| Knitting System | Double System Single Carriage |
| Knitting Width | 44 Inch |
| Knitting Speed | Max.1.2m/Sec |
| Knitting Function | Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide Or Apparent Shaping. |
| Stitch Density | Stitch System Controlled By Stepping Motor,32 Section Stitch
Selectable,Adjustable Scope Supported By Subdivision
Technology:0-650 |
| Racking | Controlled By Ac Servo Motor,Racking Within 2 Inches And With Fine
Adjustiing Function. |
| Drive System | Synchronous Belt Drive,Ac Servo System |
| Needle Selection | Controlled By Computer,Electric Magnet Needle Choose System With
High Efficiency. |
| Scissor And Clamp | Including 2 Scissor And 4 Clamps ,Which Individually Controlled By
6 Motors Separately,Located The Both Of Needle Bed
Separately,Further To Increase The Work Efficiency And To Reduce
Yarn Consumption. |
| Yarn Carrier | 2x8yarn Carriers On Each Side Of 4 Guide Rails,Shiftable On Any
Needle Position |
| Take Down Roller | Programmed Instruction Controlled By Stepping Motor,32 Section
Levels Selection Adjustable Area:0-100 |
| Sinker System | Assist Knitting,Have Various Results Of Shaping And Stop. |
| Protection System | The Machine Will Automatically Alarm If Yarn Breaking,Float
Yarn,Rewind,End Of Knitting,Fail Of Racking,Needle Breakage And
Error Programming Occur Ect. |
| Control System | 1,Adopt Lcd Screen,Input Device:Usb,System Memory 256mb,A Great
Amount Of Design Files Can Be Stored.2,Monitoring Menu,Each Kind Of
Operating Parameter,Can Be Shown,And They Can Be Adjusted At Any
Time When The Machine Is Running.3,Design System Is Visual And Easy
To Understand And Upgrad.4,Multi Language Version,There Are
Chinese,English Etc. |
| Power | 220v ,Single-Phase,Have Memorizing Function At The Power-Off Moment |
PRODUCT DETAILS
SINKER SYSTEM
Flat knitting machine for knitting needle movement in the rise and
fall with the regularity of the moment,to achieve the stitch
transfer,stitch press off,stitch knit,stitch tuck such as knitting
effects,need to help latch needle from sinker to complete,improve
the capacity of weaving.Sinker control system make the function of
sinker adjustable to achieve.
YARN TRANSPORTATION DEVICE
The yarn transportation device is installed between the yarn bucket
and knitting system,which greatly improves the uneven tension
caused by overlong yarn journey,When then yarn is sued up or
breakage of yarn takes place due to any reason,the sensor in the
yarn transportation device will alarm and the machine stops
working.This prevents the broken yarn from entering then knitting
area,making the connection of yarn easily and avoiding the damages
to the quality of fabrics.
SIDE YARN BRACKET
The side yarn bracket adopts high performance springs to exert
direct force to the part of yarn-picking.In addition to the
function of transferring the yarn with a certain tension to the
knitting ear,it is also able to pick up the redundant yarn when the
carriage stops moving upon change of the direction,making the yarn
tensed under a certain tension,so as to ensure the normalized
knitting.The side yarn bracket has safely alarms,which has sensors
that are immune to the interference from the environment,capable of
keeping their sensitivity from the beginning to the end.
EMERGENCY SWITCH
Upon emergency or when doing maintenance such as yarn going
through,needle changing and residue cleaning,this switch allows the
machine to stop working under a locked status,no need to disconnect
the main power.In this way,the data of the machine is properly kept
and accidents can be avoided,which ensure the safety of both
operator and machine.
GUOMAO computerized flat knitting machine product details
The auxiliary of GUOMAO computerized flat knitting machine
